Formula SCCA (FE)

Formula SCCA or Formula Enterprises a class of open wheel race car sanctioned by the Sports Car Club of America. A spec racing class, all chassis are produced by SCCA Enterprises in association with Van Diemen and include a sealed Mazda MZR powerplant. The chassis can also be fitted with closed-wheel bodywork and converted into a sportscar to race in C Sports Racer or the L3 class of IMSA Prototype Lites.

Drive Train
  • 2.3 Liter sealed Mazda engine

  • Alloy head and block

  • Twin cam, 16 valve

  • Torque = 170 ft/lbs @4700

  • Horsepower = 170 @ 5800

  • Electronic fuel ignition by MBE

  • Elite sequential gearbox - 5 speed

    • 1st = 2.41

    • 2nd = 1.86

    • 3rd = 1.50

    • 4th = 1.22

    • 5th = 1.08

    • Final Drive = 2.75

Specifications
  • Advanced push rod activated system operating on wide based oval section wishbones with the latest anti-intrusion bar requirements

  • Alloy casting, heat treated uprights with large diameter angular contact bearing

  • Front anti-sway bar is cockpit adjustable

  • Four (4) shock system - sealed rebound adjustable Penske

Suspension
  • Multi tubular steel spaceframe extensively braced in the cockpit and footwell areas. GCR compliant

Chassis
  • Formula One design features of a high nose, deep side pods and an engine cover with an air intake encompassing the roll hoop

Bodywork
Brakes
  • Lightweight 4 piston calipers

  • 10-1/2" diameter discs all around

  • Cockpit adjustable bias

Wheels
  • Front: 8 x 13 by OZ

  • Rear: 10 x 13 by OZ

  • Formula

    • Front wing: Full width, adjustable

    • Rear wing:Two upper elements, lower element mounted on gearbox

    • Bottom: Flat (no ground effects)

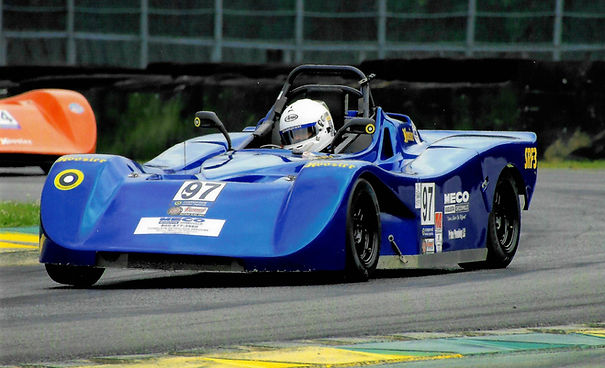

  • Sports Racer:

    • Rear WingL Single Element, adjustable

    • Bottom: Flat (no ground effects)

Aerodynamics
  • Wheel Base: 102.5

  • Front Track:

  • Rear Track:

  • Weight:

    • Formula - 1250 lbs. minimum with driver

    • Sports Racer - 1350 lbs. minimum with driver

Dimensions
  • SLICK Tires

    • Hoosier R45B Compound

    • Front - 21.5 x 8.0 x 13.0 (Hoosier PN 43270)

    • Rear - 22.0 in x 10.0 in x 13.0 (Hoosier ON 43301)

    • Marked set for qualifying and race

  • RAIN Tires

    • Hoosier Wet Compound

    • Front - 21.5 x 7.5 x 13.0 (Hoosier PN 44195)

    • Rear - 22.0 in x 9.0 in x 13.0 (Hoosier PN 44217)

Tires
  • Detachable steering wheel

  • Van Diemen rack and pinion unit

  • Dry Cell Battery

  • On-Board 2.5 kg fire system

  • Six point safety harness

  • Fuel tank mounted behind the driver's seat - 7 gallon

  • Twin high efficiency aluminum radiators with low drag coefficients housed singularly in each side pod

Other
